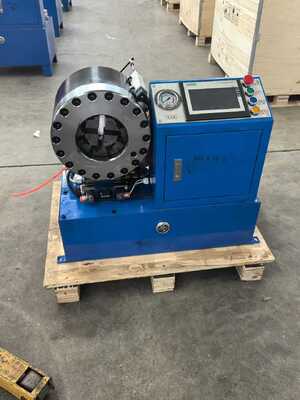

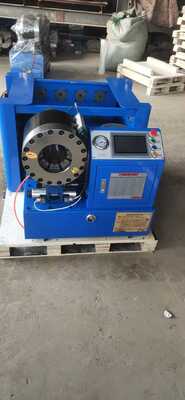

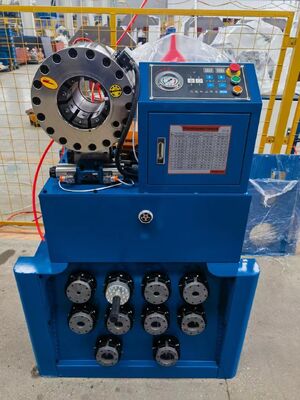

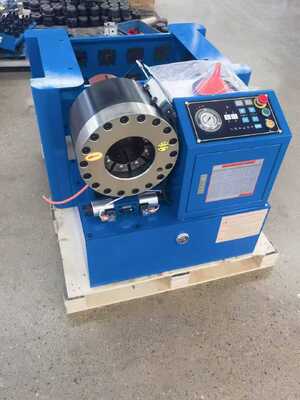

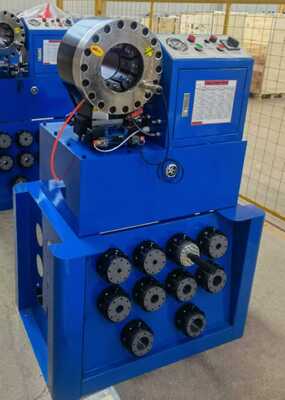

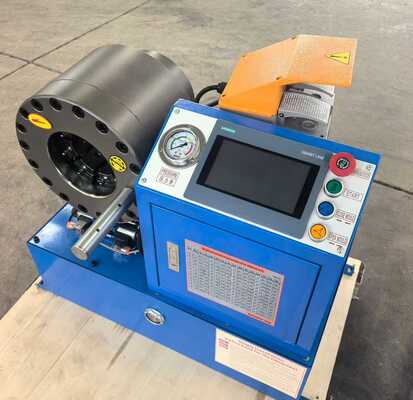

2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

2.5 Inch Hydraulic Hose Crimping Machine with Fast Change Mould Tool and 10 Interchangeable Dies for Versatile Crimping

Marka Adı:	FY
Model Numarası:	FY-P38
Adedi:	1 takım
fiyat:	USD$ 1850/1800/1750/1700
Ödeme Şartları:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Tedarik Yeteneği:	Ayda 300 takım

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin, Şangay

Sertifika:

Gerilim:

220V/240V/380V/415V(Opsiyonel)

Brüt ağırlık:

300kgs

Net ağırlığı:

275kg

Güç(w):

3KW/4KW

Boyut(U*G*Y):

950*630*700mm

Paket Boyutu:

1000*680*750mm

Garanti:

1 Yıl

Durum:

Satış Sonrası Hizmet Sağlanıyor:

Video teknik desteği, Çevrimiçi destek

Kıvırma kuvveti:

300ton/0.3mt

Ürün Adı:

Hızlı Değişim Kalıp Aleti ve Raflı Çok Yönlü Sıkma İçin 10 Kalıplı 2 İnç Hidrolik Hortum Sıkma Makin

Sıkma Sırası:

6-38mm/1.5 inç/2 inç

Renk:

mavi, mavi veya özelleştirmek

Başvuru:

Kıstır Hortumu

Ücretsiz Ölümler:

10 Takım

Sistem baskısı:

26MPA/31.5MPA/260 Bar/315 Bar

Pompanın çıkış hacmi:

2,5L/5L

Yüksek Işık:

Gelişmiş hidrolik boru sıkma makinesi, Çizgi kontrollü hidrolik boru sıkma makinesi, boru sıkma maki

Ambalaj bilgileri:

ahşap kutu

Yetenek temini:

Ayda 300 takım

Vurgulamak:

2.5 Inch Crimping Size Hydraulic Hose Crimping Machine

Fast Change Mould Tool Hose Crimper

10 Interchangeable Dies Hydraulic Crimper

Ürün Tanımı

2.5 Inch Hydraulic Hose Crimping Machine

The 2.5 Inch Hydraulic Hose Crimping Machine is a highly efficient and advanced tool designed for precise crimping of hydraulic hoses. Incorporating a fast change mould tool and featuring 10 interchangeable dies, this machine is engineered to provide versatility across various applications. With a robust PLC control system, it guarantees consistent performance, making it an essential asset for professionals in automotive, construction, and industrial sectors.

Key Features

Large Crimping Capacity: Capable of crimping hoses up to 2.5 inches, perfect for applications requiring robust performance and flexibility
Fast Change Mould Tool: Innovative design allows for swift transitions between different dies, reducing downtime
Comprehensive Die Set: 10 interchangeable dies included for accommodating various hose sizes
Advanced PLC Control System: Programmable Logic Controller ensures precise control and consistent results
Sturdy Rack System: Provides excellent support during operation, ensuring stability and precision

Operational Advantages

Enhanced Efficiency: Fast change mould tool and versatile die set significantly improve productivity
Broad Application Range: Suitable for automotive, construction, and various industrial hydraulic systems
User-Friendly Operation: Intuitive design and PLC control ensure easy use for operators of all experience levels
Cost-Effective Solution: Consolidates multiple functionalities into one machine, reducing equipment costs
Safety and Reliability: Built-in safety features protect both user and equipment during operations

Technical Specifications

Model	FY-P38 Hose Crimping Machine
Crimping Range	6-38mm (1/4"-1.5")
Crimping Force	300T
System Pressure	26Mpa/31.5Mpa (Optional)
Accuracy	0.01mm
Work Efficiency	200 pcs/h
Voltage Options	220V/240V/380V/415V
Motor Power	3KW/4KW
Dimensions (LWH)	950630700 mm
Weight	275kg
Die Sets Included	8 sets
