12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use

12v/24v Portable Hydraulic Hose Crimping Machine with 3.6KW Motor Power 10 Sets Dies and 0.01 mm Accuracy for Car Loading Use

Marka Adı:	FY
Model Numarası:	FY-51CZ
Adedi:	1 takım
Ödeme Şartları:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Tedarik Yeteneği:	Ayda 300 set

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Şangay, Çin

Sertifika:

Takviye:

1-4 kat tel

Sıkma Sırası:

6-51mm

kalıp miktarı:

10 TAKIM

Kesinlik:

0,01 mm

Sistem baskısı:

30MPa

Motor Gücü:

3.6kw

Gerilim:

12v/24v(isteğe bağlı)

Kıvırma kuvveti:

600T

Yüksek ışık:

Akıllı Işık 12V / 24V Hidrolik Hortum Sıkma Makinesi 2 İnç Hidrolik Hortum Sıkma Makinesi Araba Yükl

Ambalaj bilgileri:

Standart ahşap kutu ihracat

Yetenek temini:

Ayda 300 set

Vurgulamak:

3.6KW Motor Power Hydraulic Hose Crimping Machine

10 Sets Dies Hose Crimper

0.01 mm Accuracy Hydraulic Crimper

Ürün Tanımı

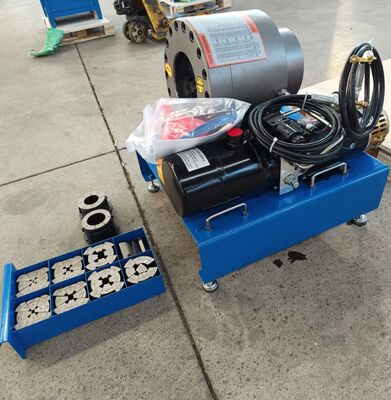

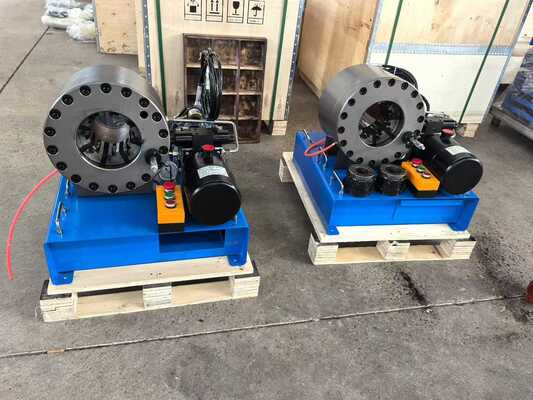

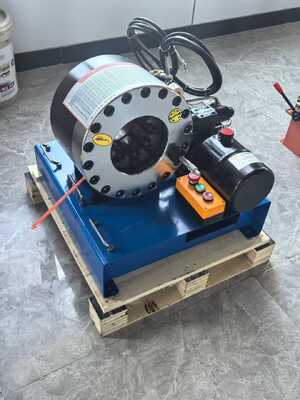

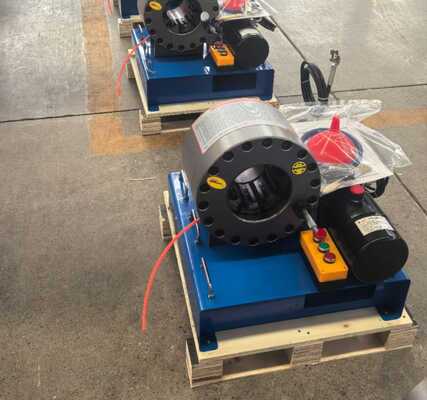

Portable 12V/24V Hydraulic Hose Crimping Machine with Smart Light Indicator and 3.6KW Motor Power for Car Loading Use

Introducing the Smart Light 12V/24V Hydraulic Hose Crimping Machine, a versatile and efficient tool designed for crimping hydraulic hoses up to 2 inches in diameter. This portable machine is perfect for automotive professionals and service providers, making it an ideal solution for car loading applications.

Key Features

Dual Voltage Operation: Operates on both 12V and 24V, providing flexibility for various vehicles and settings.
Portable Design: Lightweight and compact with ergonomic handle for comfortable usage.
Wide Crimping Capacity: Handles hoses from 6mm to 51mm (up to 2 inches) including rubber, thermoplastic, and reinforced hoses.

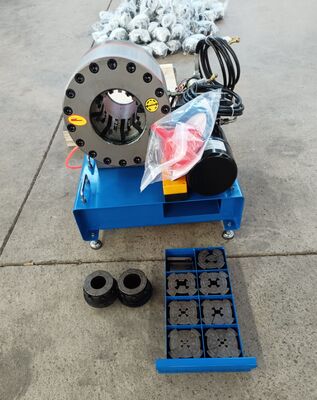

Comprehensive Die Set: Includes 10 high-quality dies for precise crimping across multiple hose sizes.
Smart Light Indicator: Built-in visual feedback for monitoring the crimping process.

Advantages

Enhanced efficiency with quick hose preparation
Precision engineering for uniform and accurate crimping
Cost-effective solution integrating multiple functionalities
User-friendly operation suitable for all experience levels
Built-in safety features for operator protection

Technical Specifications

Model	FY-51CZ Pipe Crimping Machine
Crimping Range	6-51mm (1/4"-2")
Crimping Force	600T
Max. Opening	114mm
Die Sets	10
System Pressure	30Mpa
Accuracy	0.01mm
Standard Voltage	12V/24V
Weight	170KG
Dimensions	650mm * 600mm * 600mm

* for non standard die sets

Customized die sets with different shape size available

Voltage 12V/24V is available

Optional Accessories

Quick Change Tool
Quick Change Die Set Rack
Car installing unit

Premium Features

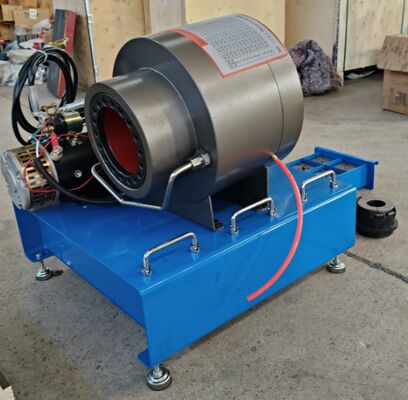

Forged Cylinder: One piece structure prevents oil leakage, saves transfer time, and increases productivity.

Micrometer: FY51CZ features high accuracy dial (0.01mm) for precise measurements.

Die Set Reference Sheet: Helps choose proper die set for different crimping sizes.

Wide Usage: Suitable for mobile vans with 12V/24V power supply, high pressure oil rubber hose assembly, low pressure water/air hose pressing, steel tube swaging, wire rope pressing, and lock device making.
