3 Inch Hydraulic Hose Crimping Machine with 1000T Crimping Force 31.5MPA Rated Pressure and 6-76mm Crimping Range

3 Inch Hydraulic Hose Crimping Machine with 1000T Crimping Force 31.5MPA Rated Pressure and 6-76mm Crimping Range

Marka Adı:	FY
Model Numarası:	FY-CBK-120C
Adedi:	1 takım
fiyat:	5000
Ödeme Şartları:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Tedarik Yeteneği:	Ayda 300 set

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Şangay, Çin

Sertifika:

Belge:

OUR CATALOGUE.pdf

Ağırlık:

1250kg

Durum:

YENİ

Boyut(U*G*Y):

755*1045*1630MM

Garanti:

1 yıl

Satış sonrası servis sağlandı:

Video Teknik Destek, Çevrimiçi Destek

Gerilim:

110V/220V/380V/415V 50/60Hz

Güç(w):

5.5kW

Kıvırma kuvveti:

1000 ton

Renk:

Mavi/beyaz veya özel

Sıkma Sırası:

6-76mm,1/4"ila 3",1/4"-3"

Ürün adı:

3 İnç Düğme Kontrol Sistemi 15 Hızlı Değişim Kalıpları ile Kalıplar Aletler Hidrolik Hortum Sıkma Ma

Uygulama:

Kıstır Hortumu

Ücretsiz Ölümler:

15 Takım

Nominal Baskı:

31.5mpa

Anahtar Kelimeler:

PLC hidrolik hortum sıkma makinesi

Yüksek ışık:

3 İnç Hortum Pres Makinası, Spiralli Hortum Pres Makinası, hortum boru pres makinası

Ambalaj bilgileri:

Standart ahşap kutu ihracat

Yetenek temini:

Ayda 300 set

Vurgulamak:

1000T Crimping Force Hydraulic Hose Crimping Machine

31.5MPA Rated Pressure Hose Pressing Machine

6-76mm Crimping Range Hydraulic Fitting Press

Ürün Tanımı

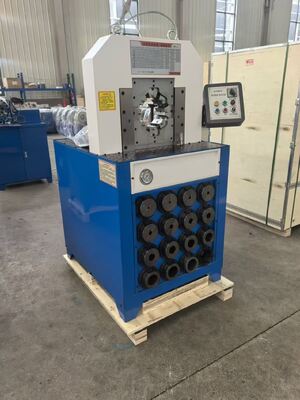

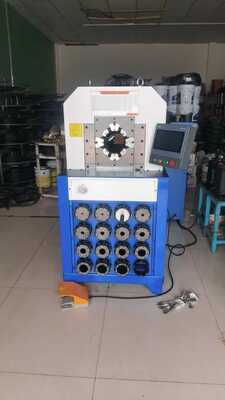

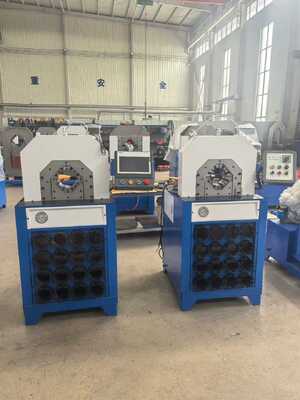

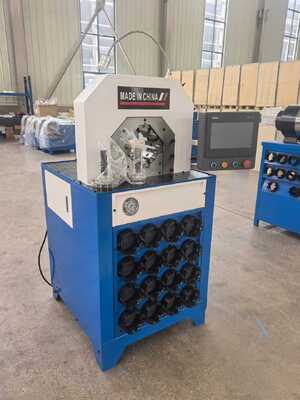

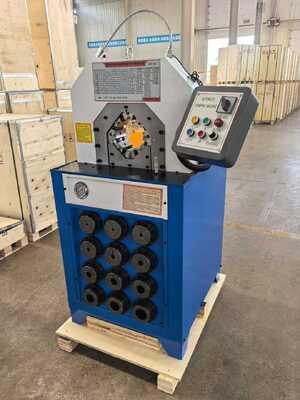

3 Inch Button Control System 15 Dies With Fast Change Moulds Tools Hydraulic Hose Crimping Machine

Hydraulic Hose Pressing Machine with Button Control System

Introducing our 3 Inch Hydraulic Hose Pressing Machine, engineered for high efficiency and quick operation. Designed for precision and versatility, this machine is perfect for various industrial applications.

Key Features

High Output of 300 Pieces/Hour - Designed for rapid crimping to boost productivity
Button Control System - Intuitive interface for precise operation
Fast Change Mould Tools - Quick-change moulds for seamless transitions
Versatile for Big Elbow Fittings - Handles larger hydraulic fittings with ease
Robust Construction - Built for durability and long-term reliability
Safety Features - Designed with operator safety in mind

Operation Precautions

Perform 20-30 unloaded crimps when first using the machine
In winter, perform additional unloaded crimps to increase oil temperature
Select and install appropriate molds based on hose specifications
Position hose with joint properly for complete crimping
Execute crimping operation until automatic mold opening
Verify crimped dimensions and adjust micrometer as needed

Technical Specifications

Crimping Range	6-76mm (1/4"-3" inner diameter)
Quantity of Dies	13 sets
System Pressure	31.5Mpa
Motor Power	4kw
Voltage Options	110V/220V/380V/415V, 50HZ/60HZ
Crimping Force	2800KN
Work Efficiency	300pcs/h
Machine Dimensions	840×1090×1760mm
Net Weight	1250kg
